Description
Product Description
Cemented carbide rod has good straightness, excellent hardness, and stable toughness.
End mills,reamers and gravers are recommended. Excellent performance for high speed cutting. Suitable for cutting hardened steel, aluminum alloy and Titanium alloy. We provide custom-made, near-net-shape, premium insert blanks in cemented carbide - also known as Tungsten carbide or solid carbide.
Material composition:
1.Physical Properties:
A) Hardness greater than or equal to 92.8 HRA;
B) Density greater than or equal to 14.2 g/cm3;
C) TRS greater than or equal to 4200 N/mm2;
D) Free of ETA phase condition;
E) No contamination by other materials;
F) Porosity = A00 / B00 / C00 ;
G) Uniform and consistent grain size. No grain size can be larger than specified.
H) Chromium carbide grain growth inhibitor only.
2.All the production, coatings are used in Germany, Switzerland, processing equipment;
3.It's proposed cutting less than 60HRC;
Feature
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.
Grade List
| Grade | ISO Code | Physical Mechanical Properties (≥) | Application | ||
| Density g/cm3 |
Hardness(HRA) | T.R.S N/mm2 |
|||
| YG3X | K05 | 15.0-15.4 | ≥91.5 | ≥1180 | Suitable for precision machining of cast iron and non-ferrous metals. |
| YG3 | K05 | 15.0-15.4 | ≥90.5 | ≥1180 | |
| YG6X | K10 | 14.8-15.1 | ≥91 | ≥1420 | Suitable for precision machining and semi-finishing of cast iron and non-ferrous metals, as well as for processing of manganese steel and quenched steel. |
| YG6A | K10 | 14.7-15.1 | ≥91.5 | ≥1370 | |
| YG6 | K20 | 14.7-15.1 | ≥89.5 | ≥1520 | Suitable for semi-finishing and rough machining of cast iron and light alloys, and can also be used for rough machining of cast iron and low alloy steel. |
| YG8N | K20 | 14.5-14.9 | ≥89.5 | ≥1500 | |
| YG8 | K20 | 14.6-14.9 | ≥89 | ≥1670 | |
| YG8C | K30 | 14.5-14.9 | ≥88 | ≥1710 | Suitable for inlaying rotary impact rock drilling and rotary impact rock drilling bits. |
| YG11C | K40 | 14.0-14.4 | ≥86.5 | ≥2060 | Suitable for inlaying chisel-shaped or conical teeth bits for heavy-duty rock drilling machines to tackle hard rock formations. |
| YG15 | K30 | 13.9-14.2 | ≥86.5 | ≥2020 | Suitable for tensile testing of steel bars and steel pipes under high compression ratios. |
| YG20 | K30 | 13.4-13.8 | ≥85 | ≥2450 | Suitable for making stamping dies. |
| YG20C | K40 | 13.4-13.8 | ≥82 | ≥2260 | Suitable for making cold stamping and cold pressing dies for industries such as standard parts, bearings, tools, etc. |
| YW1 | M10 | 12.7-13.5 | ≥91.5 | ≥1180 | Suitable for precision machining and semi-finishing of stainless steel and general alloy steel. |
| YW2 | M20 | 12.5-13.2 | ≥90.5 | ≥1350 | Suitable for semi-finishing of stainless steel and low alloy steel. |
| YS8 | M05 | 13.9-14.2 | ≥92.5 | ≥1620 | Suitable for precision machining of iron-based, nickel-based high-temperature alloys, and high-strength steel. |
| YT5 | P30 | 12.5-13.2 | ≥89.5 | ≥1430 | Suitable for heavy-duty cutting of steel and cast iron. |
| YT15 | P10 | 11.1-11.6 | ≥91 | ≥1180 | Suitable for precision machining and semi-finishing of steel and cast iron. |
| YT14 | P20 | 11.2-11.8 | ≥90.5 | ≥1270 | Suitable for precision machining and semi-finishing of steel and cast iron, with moderate feed rate. YS25 is specially designed for milling operations on steel and cast iron. |
| YC45 | P40/P50 | 12.5-12.9 | ≥90 | ≥2000 | Suitable for heavy-duty cutting tools, providing excellent results in rough turning of castings and various steel forgings. |
| YK20 | K20 | 14.3-14.6 | ≥86 | ≥2250 | Suitable for inlaying rotary impact rock drilling bits and drilling in hard and relatively hard rock formations. |

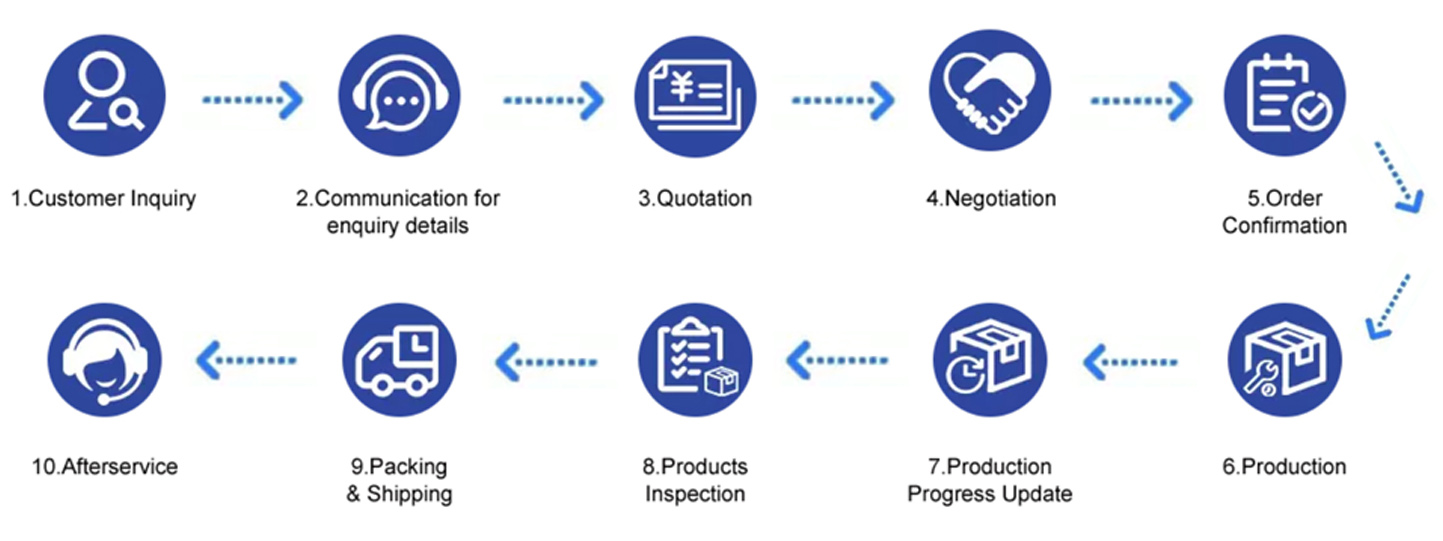

Order Process

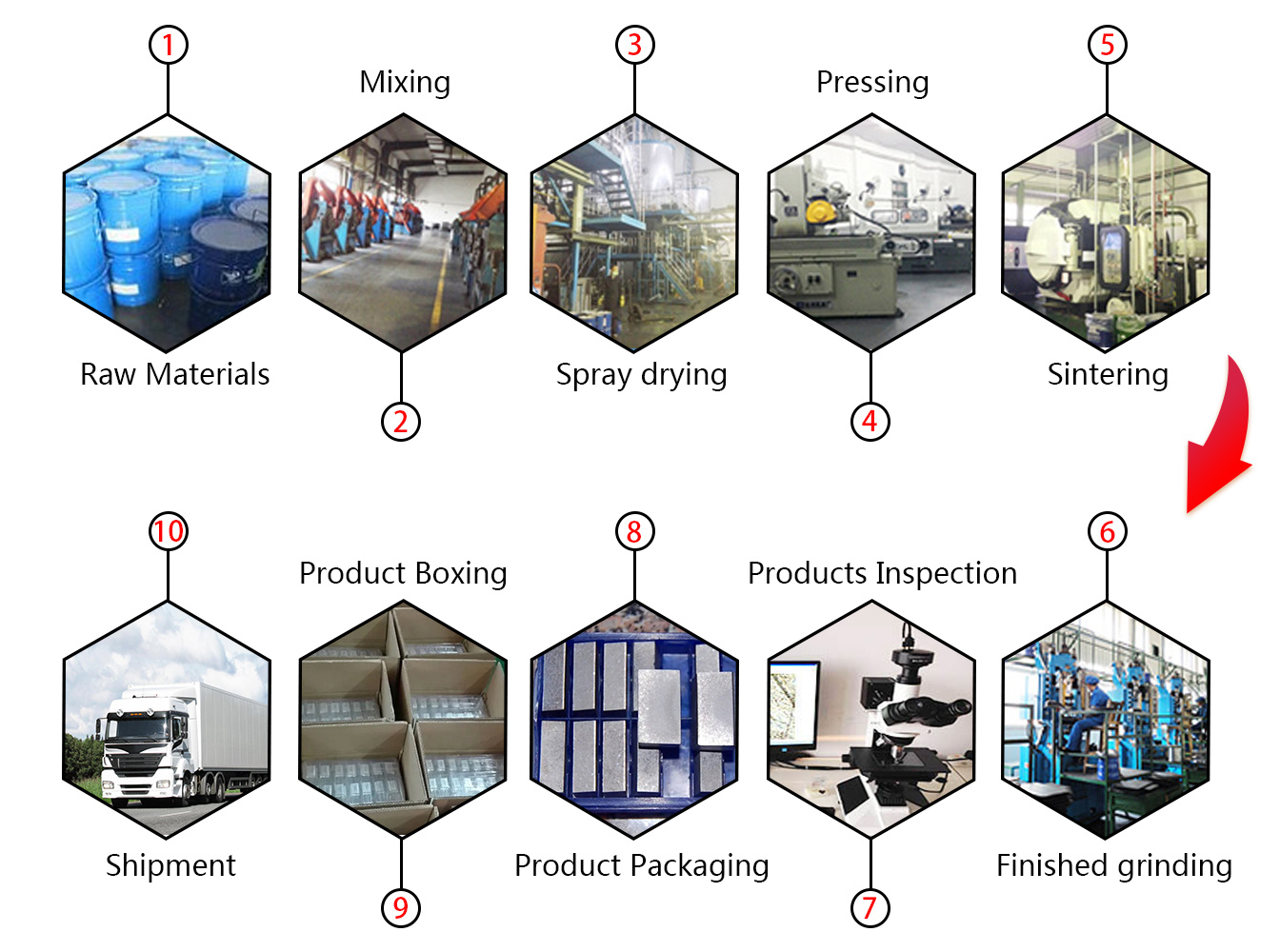

Production Process
Packaging
